Description
| References | |
| COMPLETE BUTT/RESERVOIR | 18- Screw М6х16 10.9 ISO7380-1 (x1) |
| 1- Forward plug - LSA242200 | 19- Screw М4х6 10.9 DIN913 (x1) |
| 2- Air regulator - LSA222500 | 20- Screw М4х8 А4 DIN7991 (x1) |
| 3- Bracket - LSA202014 (x1) | 21- Ring 16 DIN471 (x1) |

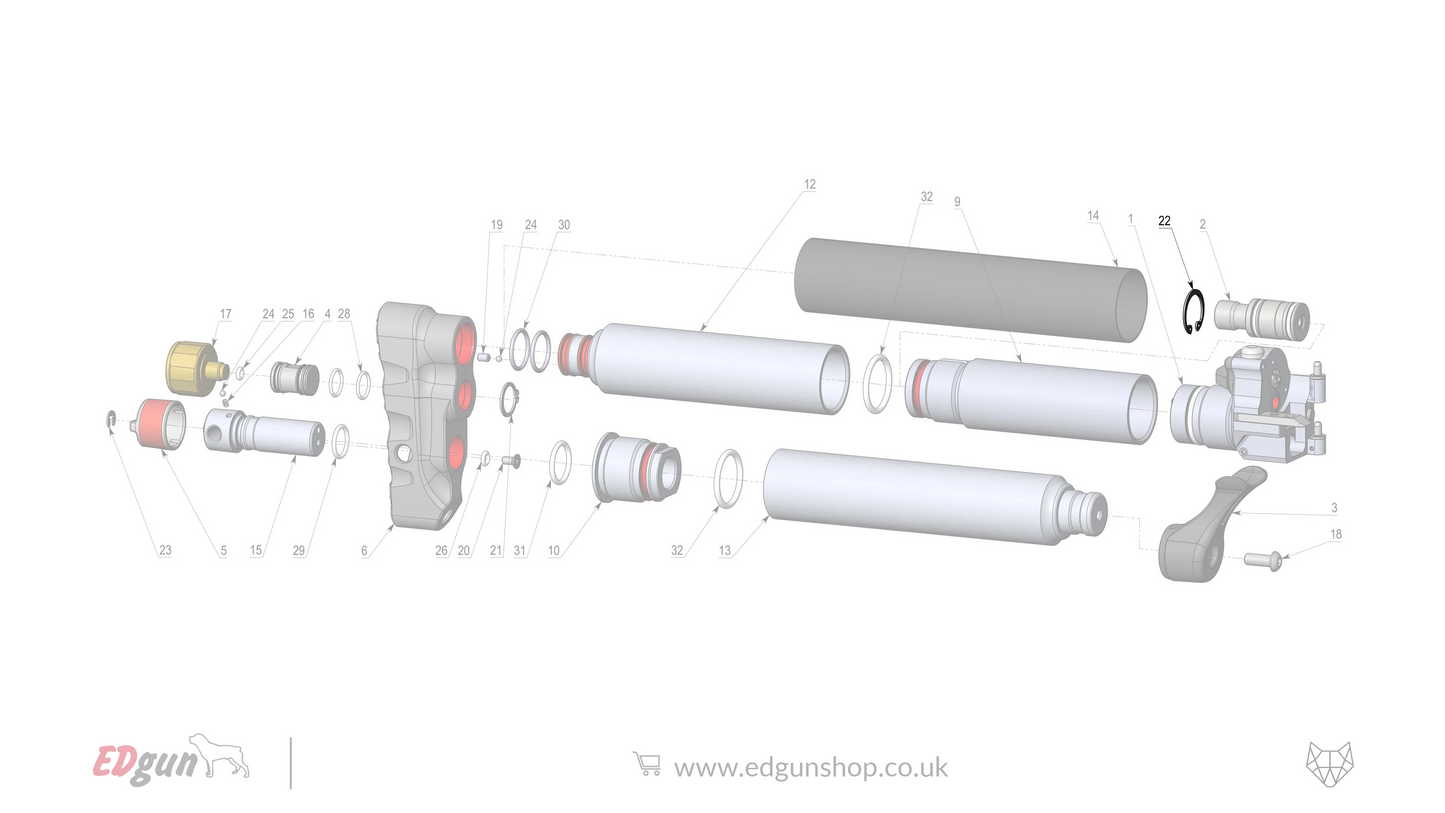

| 4- Plug - LSA212007 (x1) | 22- Ring 22 DIN472 (x1) |
| 5- Cover - LSA212013 | 23- Washer 4 DIN6799 (x1) |

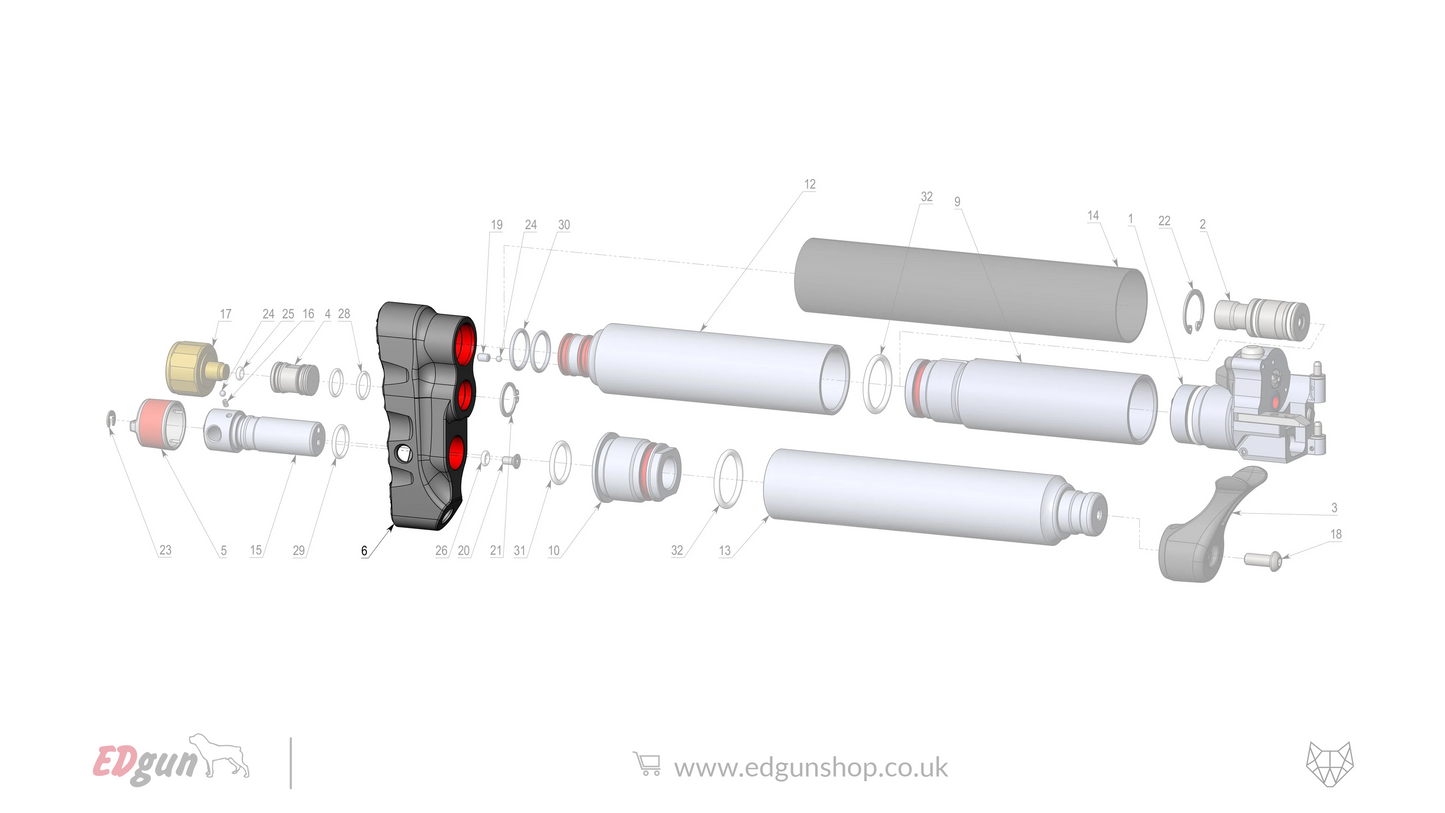

| 6- Buttpad - LSA216006 (x1) | 24- d3 Ball (x2) |
| 9- Plenum | 25- O-ring 70NBR 3х2 (x1) |
| 10- Plug - LSA222007 (x1) | 26- O-ring 70NBR 4х2 (x1) |
| 12- Butt/Reservoir - LSA222011-01 | 28- O-ring 70NBR 12х1,5 (x2) |
| 13- Reservoir - LSA222011-00 (x1) | 29- O-ring 70NBR 14х2 (x1) |
| 14- Neoprene Cover - LSA222016 (x1) | 30- O-ring 70NBR 18х2 (x2) |
| 15- Fitting - LSA228004 (x1) | 31- O-ring 70NBR 18х2,5 (x1) |

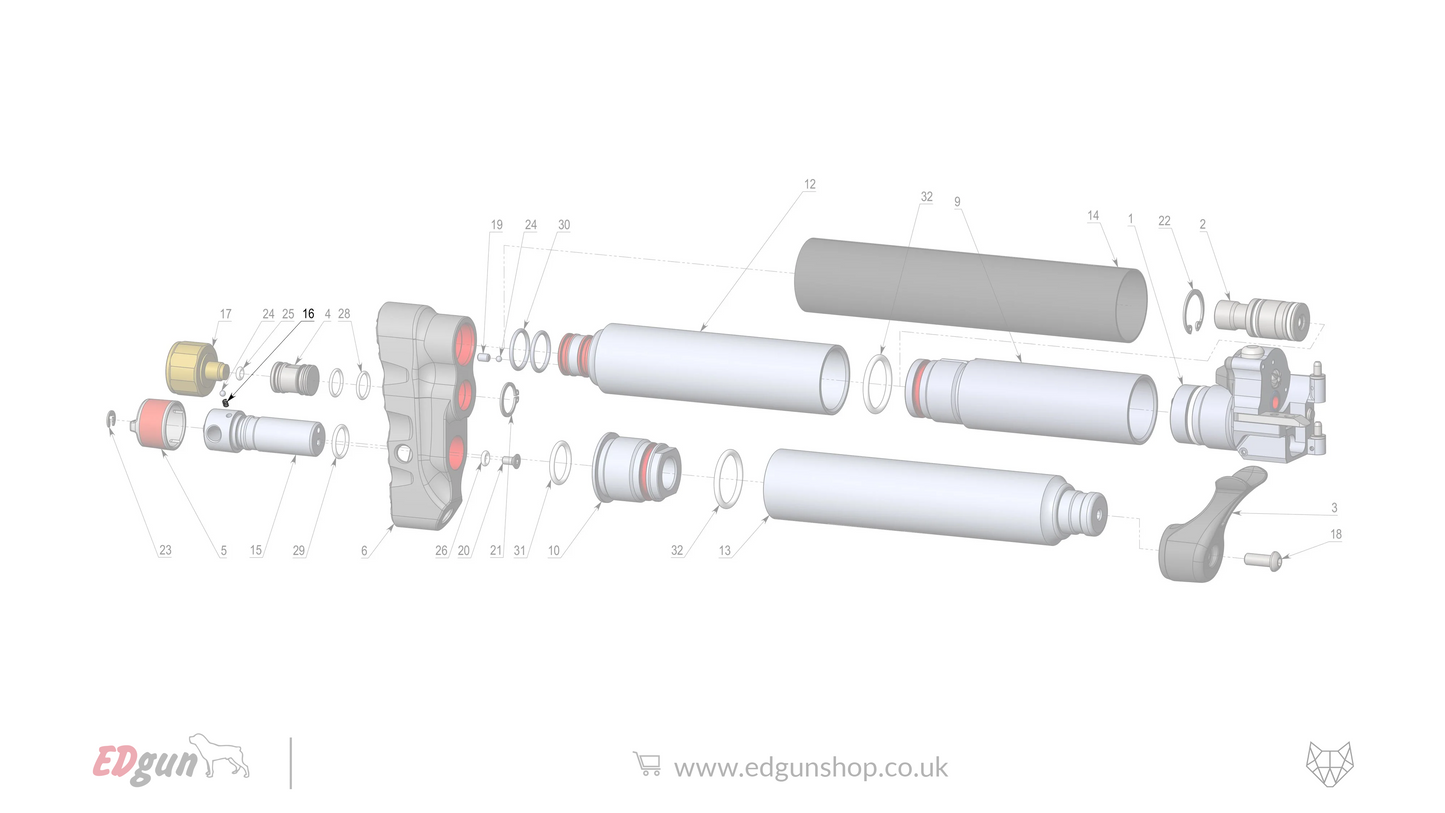

| 16- Spring 4,5х1,8х3х0,4 (x1) | 32- O-ring 70NBR 25х3 (x2) |
| 17- EDgun Air Gauge | |
